Pattern Library

PLEASE NOTE – An updated version of the Birka pattern was uploaded on 27th Feb 2014. If you downloaded patterns from this site before then you may have a copy of the previous version which had a major copy/paste error in the S/Z threading. My profound apologies to anyone who might have been wrestling with the erroneous pattern.

Images link to individual pdf versions of the patterns.

A file containing all the patterns can be found here: Tablet weaving patterns.pdf

N.B. A backwards turn is identical to a forwards turn of a tablet that has been flipped or twisted. More complex turning sequences are given both as a grid showing which cards need to turn in which direction and as a simplified sequence that uses twisted cards to replace the backwards turns.

Twisting a tablet works by turning it around the axis that runs across from the AD edge to the BC edge of the tablet, the warp threads swap from S to Z threading (or vice versa) and the A/D and B/C positions are swapped.

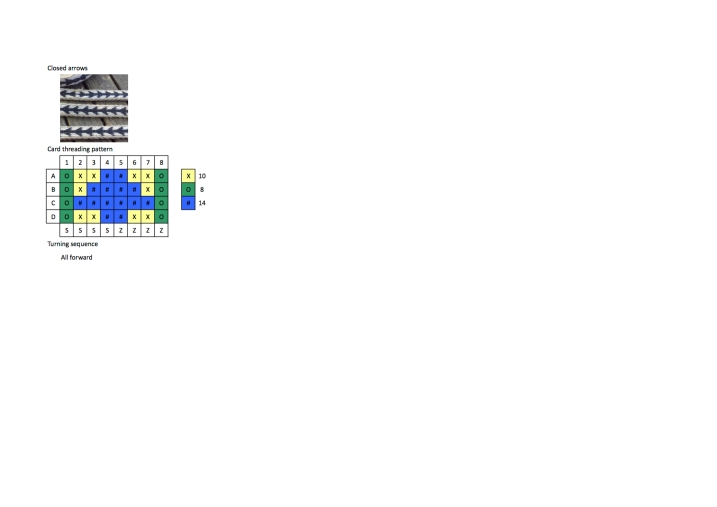

Arrows
Arrows

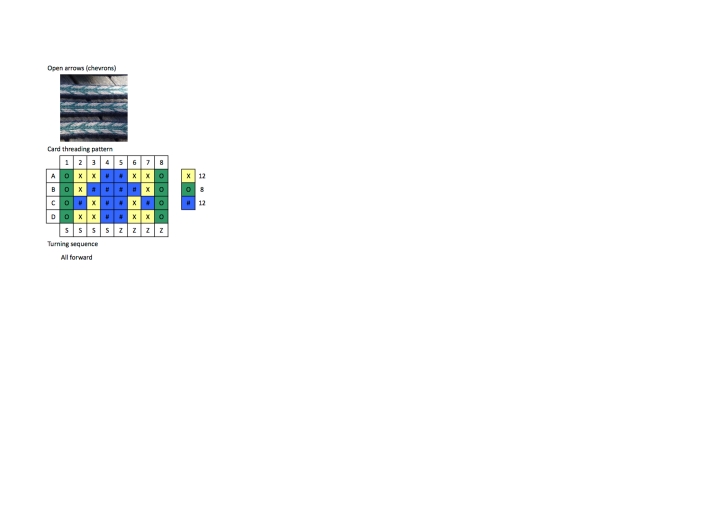

Chevons
Chevons

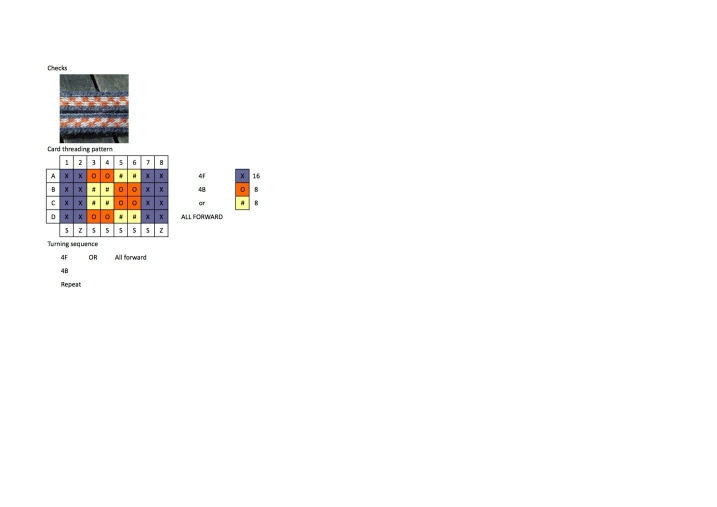

Checks
Checks

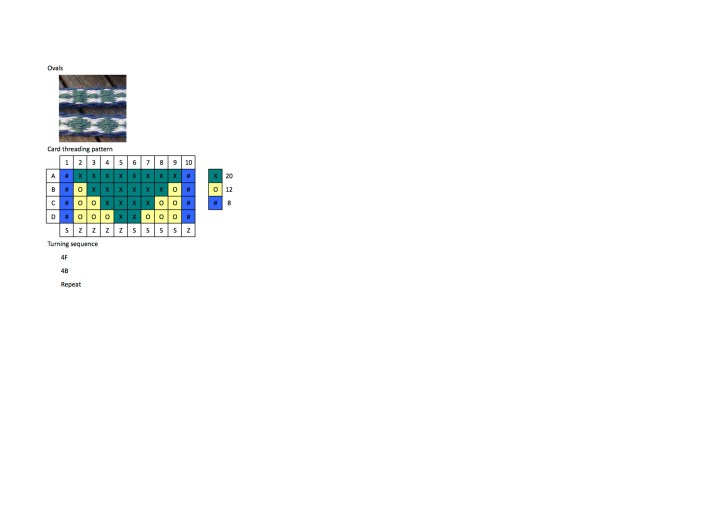

Ovals
Ovals

Greek key
Greek key

Square snake
Square snake

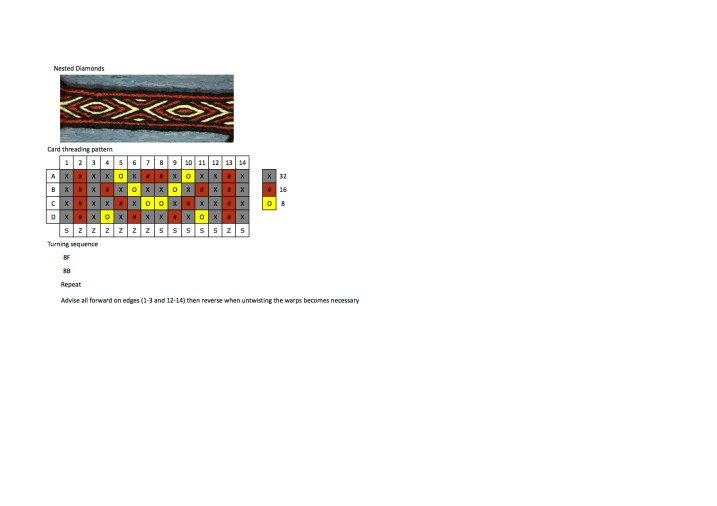

Nested diamonds
Nested diamonds

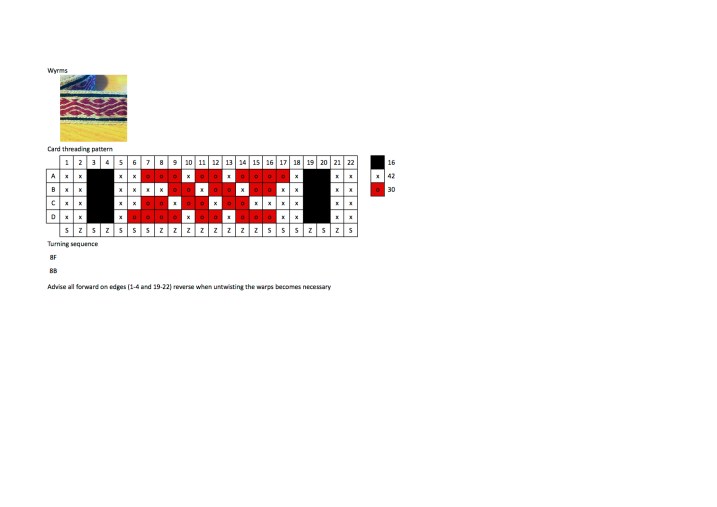

Wyrms
Wyrms

S and Z
S and Z

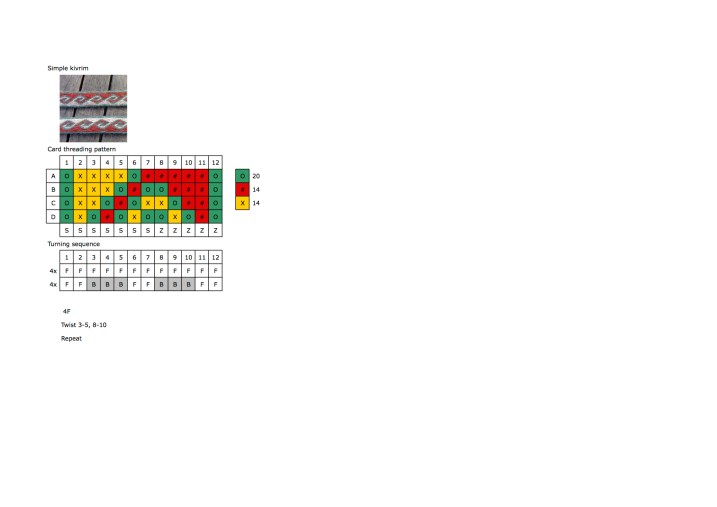

Kivrim
Kivrim

Ramshorn
Ramshorn

Eternity
Eternity

Dragons breath
Dragons breath

Braided shadow weave
Braided shadow weave

Birka strapwork
Birka strapwork

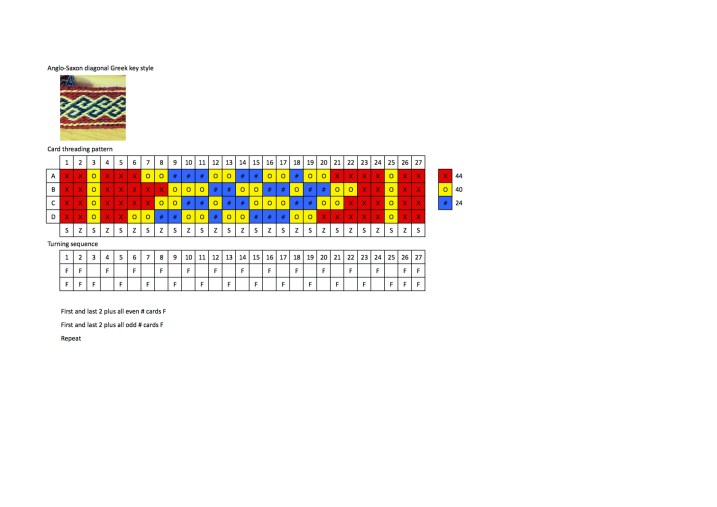

Anglo saxon diagonal greek key
Anglo saxon diagonal greek key
